 Machine

...
It is very significant to reduce energy consumption and usage of renewable raw materials for the future of world. Energy is being used for mostly heating and cooling of living space and work places.
...

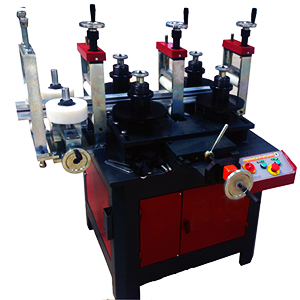

SPIN MACHINE HEAD OVER ISO BARRIER
LENGTH: 900mm
WIDTH: 800mm
HEIGHT: 1500mm
POWER: 380 V – 0.75 kW
ENGINE SPEED: 22, min: 0
FREQUENCY: 50-60 Hz
STANDARD VOLTAGE: 380V
TOTAL WEIGHT: 500 Kg

There are 2+2 pieces of disks on plates of machine. 4 pieces of disk screw method enables machine move upward and downward. In all kind of profiles, it is easy to adjust in minimise the loss of time. 2 pieces of 4 disks on machine are capstan. Other 2 pieces are drifter rotaries. In order not to scratch the profile on the machine, areas that profile passes through are supported with polyamide rollers. At the moment of compaction, it enables to discharge of profile in scale. After compaction of profile in machine, tinfoiling covers upper and lower part of profile. Foil strain has braking equipment.

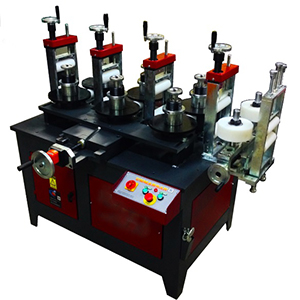

SPIN MACHINE HEAD LOWER ISO BARRIER
LENGTH: 1500mm
WIDTH: 800mm
HEIGHT: 1500mm
POWER: 380 V – 0.75 kW
ENGINE SPEED: 22, min: 0
FREQUENCY: 50-60 Hz
STANDARD VOLTAGE: 380V
TOTAL WEIGHT: 700 Kg

There are 3+3 pieces of disks on plates of machine. 6 pieces of disk screw method enables machine move upward and downward. In all kind of profiles, it is easy to adjust in minimise the loss of time. 3 pieces of 6 disks on machine are capstan. Other 3 pieces are drifter rotaries. In order not to scratch the profile on the machine, areas that profile passes through are supported with polyamide rollers. At the moment of compaction, it enables to discharge of profile in scale. After compaction of profile in machine, tinfoiling covers upper and lower part of profile. Foil strain has braking equipment.

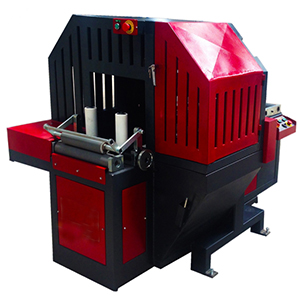

DOUBLE HEAD NYLON WRAPPING MACHINES
LENGTH: 1800mm
WIDTH: 1500mm
HEIGHT: 1990mm
POWER: 380 V – 0.75 kW
ENGINE SPEED: 600, min: 0
FREQUENCY: 50-60 Hz
STANDARD VOLTAGE: 380V
TOTAL WEIGHT: 500 Kg

At the entrance part of machine, there is a idler roll that is located at four parts of idler discharger. Diameter of the area that profiles passing through the disk is 320 mm. Idler roll mechanism is connacted to chain system. This system is connected to reducer. Those are designed as easy to adjust. If the machine cover is opened during operation, machine stops.

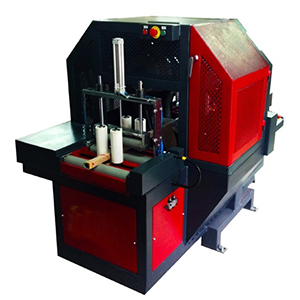

PNEUMATIC DOUBLE HEAD NYLON WRAPPING MACHINES
LENGTH: 240mm
WIDTH: 50mm
HEIGHT: 95mm
POWER: 380 V – 0.75 kW
ENGINE SPEED: 140D/DK, min: 0
FREQUENCY: 50-60 Hz
STANDARD VOLTAGE: 220V
TOTAL WEIGHT: 225 Kg

The machine is driven by dual-axis. Diameter of driven rollers of the machine is 170mm and length is 200mm. Two parts of driven rollers that makes pressure on profile is with 70mm diameter and 200mm length. There are five pieces of 70x40mm rubber driven rollers and one piece of sponge driven roller on the machine as spare apparatus. At the inlet part of machine, there is a foil holder mechanism as upside-down. Foil holders are designed with capacity of moving 100 mm to-and-fro. Tension adjustment of foil on profile is adjusted with a braking system made on back part of foil holders. At the inlet part of machine, there are four pieces of driven roller system. With the consideration of destruction possibility of profile within driven rollers with time, there is a mechanical system located on a spot that enables to-and-fro movement. There are two pieces of pistons on the machine with 32x200mm size.

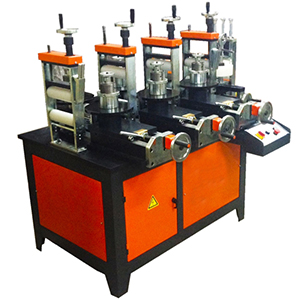

SPIN MACHINE HEAD UNDER MOVING ISO BARRIER
LENGTH: 1000mm
WIDTH: 800mm
HEIGHT: 1500mm
POWER: 380 V –0,75kW
ENGINE SPEED: 22 , min: 0
FREQUENCY: 50-60 Hz
STANDARD VOLTAGE: 380V
TOTAL WEIGHT: 700 Kg

There are 3+4 disks located on plates of machine. 3 parts disks are adjustable on 3 spots separately. 6 pieces in the machine are able to move upward and downward with screw method. In all kind of profiles, it is easy to adjust in minimise the loss of time. In order not to scratch the profile on the machine, areas that profile passes through are supported with polyamide rollers. At the moment of compaction, it enables to discharge of profile in scale.

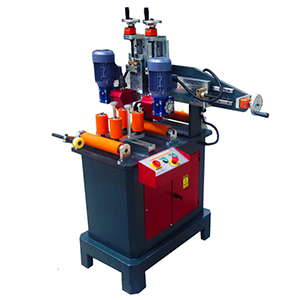

ALUMINIUM PROFILE KNURLING MACHINE
VOLTAGE: 380 V
WIDTH: 840mm
HEIGHT: 1700mm
POWER: 380 V –0,18kW
ENGINE SPEED: 140 , min: 0
FREQUENCY: 50-60 Hz
STANDARD VOLTAGE: 380V
TOTAL WEIGHT: 400 Kg
CONVEYOR LENGTH: 4000 mm 2 adet
CONVEYOR WIDTH: 280 mm

There are 3 spots on the machine. Two of them works vertical, other one works horizontal. There are two reducers mounted on vertical spots. There are two disks that makes groove threading on profile. There are polyamide rollers supported from bottom and sides of profile in order to prevent destruction during operation.
